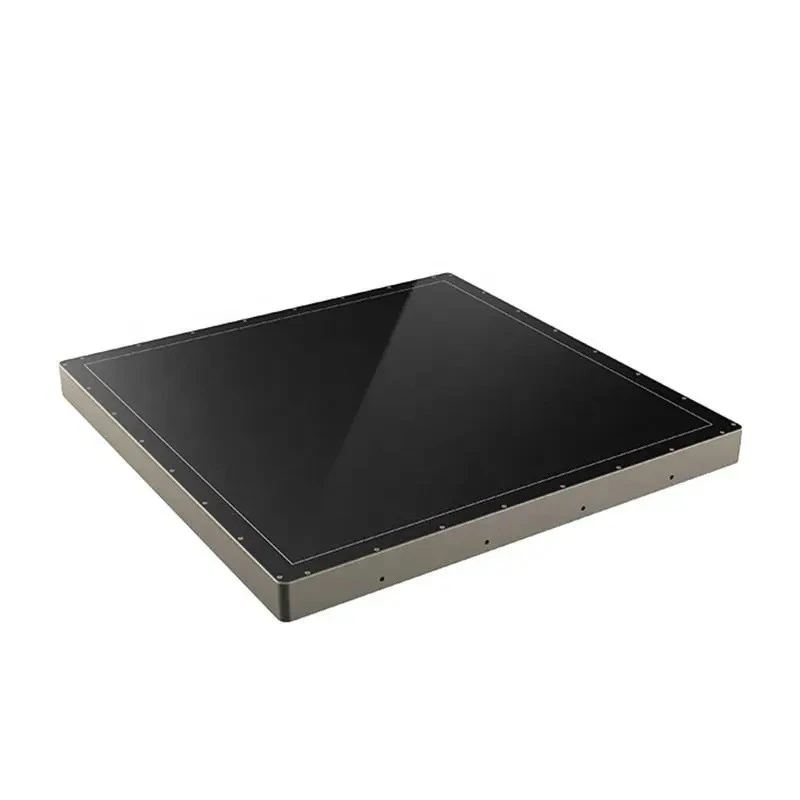

Fatali FTLMercu 1717V 17 × 17 Tiag -Lub Sijhawm Dynamic Flat Panel Detector
CovFatali FTLMercu 1717Vyog lub siab -kev ua tau zoo 17 × 17-inch tiag- lub sij hawm dynamic ca vaj huam sib luag ntes tsim los ntawm Fatali. Ua los ntawm qib siab amorphous silicon (a-Si) thev naus laus zis nrog kev tso tawm ncaj qha CsI scintillator, lub ntsuas hluav taws xob tiaj tiaj no muab cov txiaj ntsig qis tshaj - koob tshuaj txog li 30 fps, txhawb nqa ob qho tib si hluav taws xob zoo li qub thiab cov txheej txheem fluoroscopic dynamic. Nws cov qauv tsim muaj ntau yam ua rau nws yog qhov tseem ceeb tshaj plaws rau cov tshuab fluoroscopic X-ray niaj hnub thiab kev sib koom ua ke tsis sib haum thoob plaws ntau lub chaw kho mob.
Core Features & Cov txiaj ntsig
1. Muaj tiag tiag -Lub Sijhawm Dynamic ImagingRaws li tus kws tshaj lij dynamic vaj huam sib luag ntes, FTLMercu 1717V muaj cov qauv hloov pauv tau: 10 fps ntawm kev daws teeb meem tag nrho (1 × 1), 20 fps nrog 2 × 2 binning, thiab 30 fps nrog 3 × 3 binning. Qhov no ua kom du, tiag tiag -lub sijhawm pom ntawm cov qauv txav- zoo meej rau kev tshawb fawb txog plab hnyuv, kev cuam tshuam orthopedic, thiab lwm yam txheej txheem fluoroscopic.
2. Exceptional Tsawg-Kuaj Duab ZooQhov ncaj qha tso tawm CsI scintillator muab kev hloov pauv lub teeb zoo dua, xa cov teeb liab siab - rau -Noise Ratio (SNR) thiab distortion- cov duab dawb. Qhov no 17 × 17 dynamic vaj huam sib luag ntes ntes tswj kom pom tseeb zoo thaum ua kom tus neeg mob raug hluav taws xob tsawg kawg nkaus -tshwj xeeb tshaj yog muaj txiaj ntsig rau kev soj ntsuam ntev lossis rhiab heev.
3. Switchable Gain rau qhov kawg FlexibilityNrog adjustable nce nqis, no dynamic tiaj vaj huam sib luag ntes intelligently yoog mus rau txawv ntau npaum li cas thiab kev kho mob xav tau kev pab. Txawm hais tias ua tau zoo ultra- qis- koob tshuaj fluoroscopy lossis siab - daws teeb meem zoo li qub, nws ua kom pom cov duab zoo nyob thoob plaws ntau yam txheej txheem.
4. Zoo tshaj Clinical VersatilityFTLMercu 1717V txhawb nqa tag nrho cov kev siv: radiography (pob txha, ntsws, cov ntaub so ntswg), tiag tiag -lub sij hawm fluoroscopy, CBCT/3D cone beam CT, thiab cov txheej txheem tshwj xeeb hauv gastroenterology, urology, thiab orthopedics. Ib lub tshuab kuaj xyuas ua haujlwm ntau yam haujlwm, txo cov nqi khoom siv thiab txhim kho kev ua haujlwm ntawm lub tuam tsev.
5. Muaj zog & txhim khu kev qhaQhov hnyav tsuas yog tsawg dua los yog sib npaug li 7.8 kg nrog lub vaj tse compact, ruaj khov, lub vaj huam sib luag zoo li no yog tsim los rau siab - ntim chaw kho mob ib puag ncig. Nws ua haujlwm ntseeg tau los ntawm 10 ~ 35℃thiab mus txog 90% RH (tsis yog-condensing), ua kom muaj kev ua tau zoo ib hnub dhau ib hnub.
Technical Specifications
| Parameter | Specification |
|---|---|
| Hom | Fatali |
| Qauv | FTLMercu 1717V |
| Ntes Technology | Amorphous Silicon (a-Si) |
| Lub tshuab hluav taws xob | CsI (Direct Deposition) |
| Chaw ua haujlwm | 17 × 17 po |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial daws teeb meem | 3.6 hli / hli |
| Kev hloov pauv AD | 16 bit |
| Ncej tus nqi | 10 fps (1 × 1), 20 fps (2 × 2), 30 fps (3 × 3) |
| Cov ntaub ntawv interface | Fiber ntau |
| Qhov ntev | 470 × 470 × 35 hli |
| Qhov hnyav | Tsawg dua lossis sib npaug li 7.8 kg |
| Lub zog Dissipation | 25 W |
| Ua haujlwm kub | 10 ~ 35 degree |
| Kev khiav dej num | 20 ~ 90% RH (Tsis yog -Condensing) |
| Cia Kub | -10 ~ 50 degree |
Ideal Applications
Fatali FTLMercu 1717V 17 × 17 tiag tiag - lub sij hawm dynamic ca vaj huam sib luag ntes tau zoo kawg nkaus rau:
Cov txheej txheem fluoroscopic (GI kev tshawb fawb, urology, orthopedic kev taw qhia)
General static radiography nyob rau hauv radiology departments
Advanced CBCT thiab 3D cone beam CT duab
Ntau- chav haujlwm ua haujlwm hauv plab hnyuv, urology, orthopedics, thiab interventional suites
