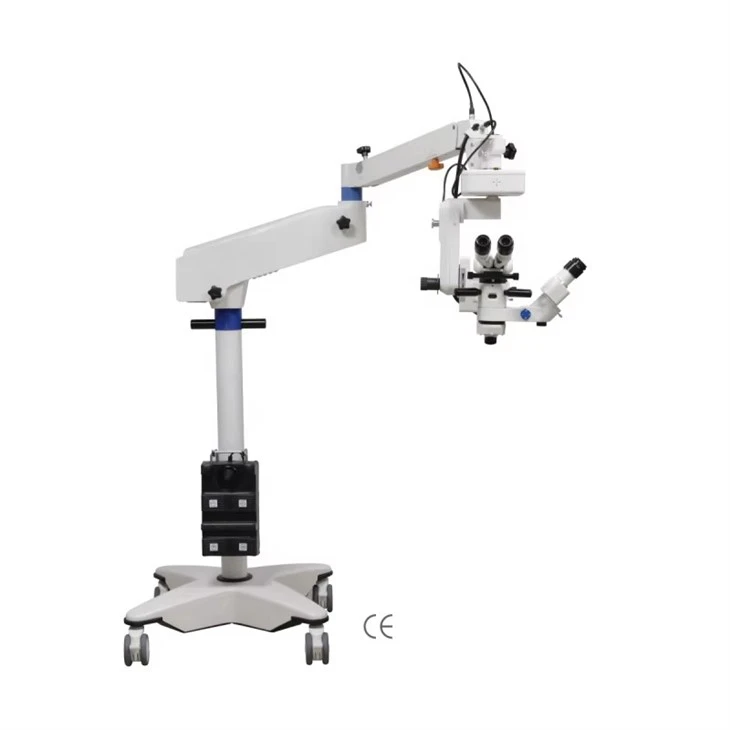

SOM2000D Ua Haujlwm Microscope
• Lub teb chaws Yelemees Schott optics ua kom tus kws phais mob ci ntsa iab, sib npaug, thiab kev soj ntsuam zoo. • Apochromatic thev naus laus zis siv hauv kev tsim kho qhov muag, ua kom pom tseeb coaxial teeb pom kev zoo thiab muab qhov pom tseeb dua. • Xauv lub cuab yeej nyob rau hauv lub koob yees duab caj npab ua kom muaj kev nyab xeeb nyob deb thiab tiv thaiv kom tsis txhob muaj xwm txheej tshwm sim. • Independent hluav taws xob tswj lub thawv nrog kev ua haujlwm ntawm kev kuaj mob tsis siv neeg, uas yooj yim heev rau kev teeb tsa thiab kho yog tias tsim nyog
|
Specifications |
|
|
Eyepiece magnification |
12.5× |
|
Loj lub hom phiaj lens focal ntev |
F=215 hli |
|
Ua haujlwm nrug |
170 hli |
|
Tag nrho magnification ntawm lub ntsiab microscope |
4.6 × - 27 × motorized thiab phau ntawv tswj nruam magnification |
|
Teb txoj kab uas hla |
4.6 × (Φ46mm) 27 × (Φ8.5mm) |
|
Secondary microscope magnification |
6×,10×,14× |
|
Kev Kho Diopter |
+5D - - 5D |
|
Kev hloov pauv ntawm cov menyuam kawm ntawv nrug deb |
55mm - 75mm (lub ntsiab microscope yog 45mm - 80mm) |
|
Illumination Source |
12V / 100W, txias reflection halogen teeb rau kev kho mob |
|
Teeb pom kev zoo |
6 degree txias lub teeb ci coaxial teeb pom kev zoo; 26 degree oblique teeb pom kev zoo |
|
Teeb pom kev zoo |
Φ45 (F=215 hli) |
|
Me me tsom stroke |
Ntau tshaj lossis sib npaug li 40mm |
|
Zoo focusing ceev |
Tsawg dua lossis sib npaug li 2mm / s |
|
XY kev txav chaw |
50mm × 50mm (X - ← 0 - - 25); nyob rau hauv situ 0; X+ → 0 - +25; Y- ↓ 0 - -25; Tsev txoj hauj lwm 0; |
|
XY txav ceev |
Tsawg dua lossis sib npaug li 2mm / s |
|
Vertical adjustment ntau yam |
880mm - 1420 hli |
|
Mus txog Radius of Arm |
1230 hli |
|
Input zog |
170 VA |
|
Fais fab mov |
AC110V / 220V ± 10%, 50Hz / 60Hz |
